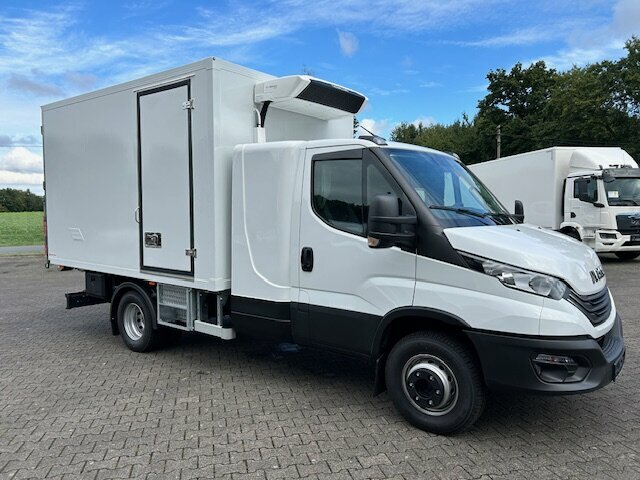

Kebab transport / freezer box / refrigerated transporter
Equipment:
- ABS
- Rear-wheel drive
- Air suspension
- Navigation system
- Particle filter
- Central locking
Freezer box body:
- Side walls in 80 mm sandwich composite panel
- Front wall in 100 mm sandwich composite panels with
- Reinforcing frame for cooling unit
- Roof in 100 mm sandwich composite panel
- In the roof 2 LED interior lights without motion detector
-
Stainless steel rear portal with 2-leaf door, door thickness 85 mm
and one external espagnolette lock each -
Side panel right (in direction of travel) with single-leaf door
Stainless steel frame, approx. 900 mm width left
Installation dimension from inside front wall 250 mm
with internal lock made of VA.
Load floor:
Without wheel arches, ISO floor with a total thickness of 120 mm
with aluminium barley grain surface
2. pcs. Water drains
Accessories:
- Door retainer for doors
- 2-step folding step, approx. 750 mm wide under the side door
- 1 pull-out rear platform stepladder
- 1 stainless steel handle, rear right
-
1 row of attached combination anchor rails on the side walls
mounted, height approx. 800 mm from floor to centre of rail - 1 telescopic locking bar
-
Sturdy aluminium sheet panelling (scuff protection) on the side
side walls, front wall, side door and rear doors
approx. 1,250 mm high - 2 sturdy roller bumpers at the rear under the doors
- Rear view camera without separate screen
Paintwork:
Substructure without, as hot-dip galvanised,
Superstructure paint in IC 194 coloured white, gloss level 70 %.
Thermo King V-600 MAX 20:
-
Travelling and mains operation (400V / 3Ph / 50Hz)
12 Volt version - Drive of the refrigeration compressor by the vehicle engine
- Flat vaporiser ES600MAX
- Refrigerant R134a
-
Useful cooling capacity at:
0 °C: 6,540 watts, at -20°C 3,480 watts -
Chiller connection cable (connection on left-hand side)
10 m / 16 A / 400 V / 5 x 2.5 mm²
Compressor kit, Thermo King, Iveco
Daily, 3.0 l engine
suitable for chassis: - suitable for refrigeration machine:
- Thermoking V200 / V300 / V500 / V600
-
Mounting direct-drive chiller Cat.C 1 x
Temperature recorder Thermo King TouchLog
Standard, for installation in the radio shaft - Built-in printer for data printout
- Automatic switchover between summer and winter time
- 1 USB port
-
complies with Euro standard EN 12830 class approval
Type E and WELMEC 7.2
Price: 96,500 €
With Hatcher Deepsleeper incl. heating
The vehicle was briefly registered but not used!
